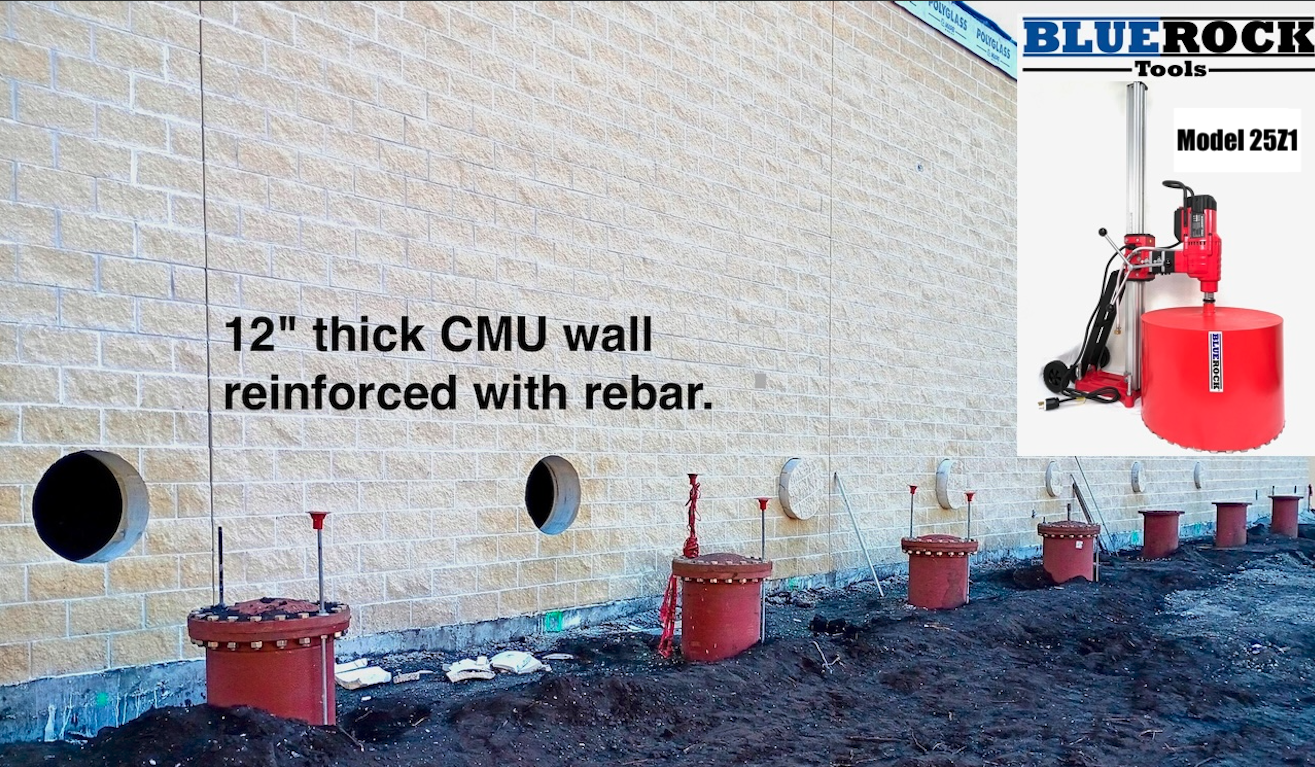

BLUEROCK Model 25Z1 220v Extra Large 25" Capacity Concrete Core Drill w/ Long Stroke Stand & Rolling Base

BLUEROCK 25Z1 Extra Large 2-SPEED CORE DRILL

OUR BIGGEST, MOST POWERFUL 25" CAPACITY CONCRETE CORE DRILL

WITH LONG STROKE STAND AND ROLLING BASE

Specifications:

• Max Drilling Diameter: 25"  (The drill bit pictured is not included in this sale)

• Rated Voltage: 220V
• Rated Frequency: 60Hz, Single Phase
• Rated Input Power: 5000W
• Two Speed: 230/370 RPM

• Gear 1 (230 rpm) for 16"-25" holes, Gear 2 (370 rpm) for 1"-15" holes
• NEMA L6-30P 250V 3-Prong Twist Lock Plugs into an L6-30R outlet.


Structure and Features:

• Visual LED Load % Indicator with Intelligent controller for overload protection
• 2-gear rotary speed is designed for drilling different size holes
• The drill is fitted with an outer regulating safety clutch
• Integrated water hose/ valve with garden hose spigot threaded end for "wet" drilling
• 61" Tall Stand with measured inch and centimeter drilling depths visual
• Horizontal and Vertical bubble levels with corner leveling adjustment bolts on base
• Dual Speed carriage press with a 1:1 standard and 1:3 fine gear handle pressure options

• Left or right side compatible quick disconnect press handle
• Quick Release motor mount for easy installation and transport
• Rugged quality motor carrying case, with wrench set
• Anti-locking ring to prevent bit seizing and easier release
• For concrete, asphalt and masonry drilling. Reinforced concrete with rebar

Measurements:

Stand: 61" Tall

Base Footprint: 19"x14.5" Wide

Front motor to back wheels: 36"

Maximum possible core bit with extensions total length: 42"

Anchor bolt hole: 3/4"

Total shipping weight:  2 Boxes; 84lbs Stand 66"x`12"x18" & 63lbs Motor 10"x26"x20"

NOTE: The 24" drill bit pictured is not included in this sale (although it is for sale in our store). We stock large 12", 14", 16", 18", 20, 22, 24" diameter core bits.

ATTENTION: This item ships in 2 separate boxes. BLUEROCK may mark the order as delivered when the first package arrives. The second package may still be in transit. Use the tracking number to view the full shipment details with FedEx to see the status of both packages.

FOR SHIPPING OUTSIDE OF CONTINENTAL UNITED STATES PLEASE CONTACT FOR SHIPPING QUOTATION, IF NOT OTHERWISE SPECIFIED IN ITEM DESCRIPTION.

Note to buyers: Concrete coring bits are considered a consumable part.  Bit life varies based on many factors including; material type, material density, depth of cut, hole diameter, drilling speed, wet/dry drilling and operator experience.  As such, it is extremely difficult for BLUEROCK Tools to assess individual projects and speak to how long a bit will last before it needs to be replaced.

We consider these core bits to be mid-grade in their performance but sold at a low-grade price point.  Our customers tend to consider these bits to be a better value compared to high-grade bits that are a lot more expensive.  We often hear that even though high-grade bits may last twice as long, they cost four times the price and they are happy buying our bits and getting the same amount of feet cut for half the price.

Wet type concrete coring bits are NOT designed to cut all types of rock. They are primarily designed to cut concrete.  Certain types of rock can be cut, but it will limit the bit life. The decision to use these bits on materials that they are not primarily designed for will be done at the risk of the user and not covered under our standard business policy.
