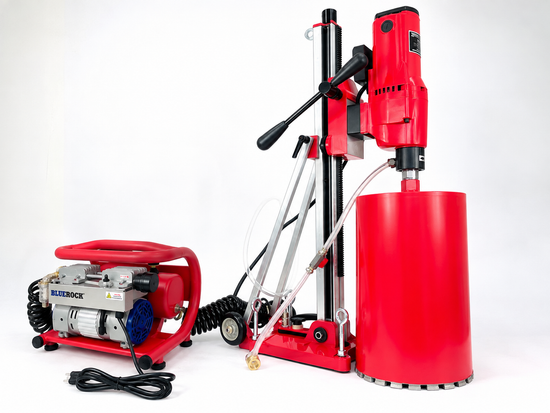

BLUEROCK 12Z1 T/S 12” Concrete Core Drill Package with Tilting Stand & VP-200 Vacuum Pump w/ 4L Tank
Brand : BLUEROCK TOOLS
- SKU:
- 12Z1T/S & VP200
- UPC:
- 789091584131
- Availability:
- IN STOCK – Ships Same Business Day (Order by 2PM Pacific / 5PM Eastern)
- Weight:
- 115.00 LBS
- Shipping:
- FREE USA Shipping | Express Available
BLUEROCK 12Z1 T/S 12” Concrete Core Drill with VP-100 Tankless Vacuum Pump
✓ 1-Year Limited Warranty Included | ✓ LIFETIME U.S.-Based Technical Support | ✓ U.S. Stocked Replacement Parts
The BLUEROCK 12Z1 T/S is a high-capacity 12” wet/dry concrete core drilling machine with a 2600W dual-speed motor, tilting stand, rolling vacuum base, and upgraded VP-200 Tank Vacuum Pump. Designed for drilling concrete, reinforced concrete with rebar, asphalt, masonry, brick, block, rock, stone, and similar mineral-based materials with the appropriate diamond core bit, the 12Z1 T/S provides 460 and 900 RPM operating speeds for larger and smaller diameter coring applications. The included VP-200 produces up to -0.09 MPa vacuum with 113 L/min airflow and adds a 4-liter reserve tank, integrated vacuum gauge, water trap, and protective steel frame for demanding vacuum-base drilling applications.
Features
- 12” maximum drilling capacity for large-diameter concrete penetrations
- 2600W dual-speed motor: 460 RPM for larger bits and 900 RPM for smaller/medium diameter bits
- Tilting stand supports vertical, horizontal and angled drilling applications when properly secured
- Rolling base with integrated vacuum mounting system for faster positioning and setup
- VP-200 Tank Vacuum Pump included for vacuum-base mounting on suitable smooth, flat surfaces
- 4-liter vacuum reserve tank helps maintain holding pressure during minor leaks or pressure fluctuations
- Outer regulating safety clutch, overload protection and double-insulated motor design
- Integrated water-hose connection for wet coring applications
12Z1 T/S Core Drill Specifications
- Maximum Drilling Diameter: 12” (the drill bit pictured is not included, see separate listing for core bits)
- Voltage / Frequency: 110V AC, 50–60Hz
- Motor Input Power: 2600W
- Speed: Dual Speed – 460 / 900 RPM
- Drilling Type: Wet & Dry Coring
- Threaded Arbor to Bit Connection: 1-1/4" Industry Standard
- Stand: Tilting
- Base: Rolling / Vacuum Ready
- Water Feed: Integrated Hose Connection
- Safety: Mechanical Safety Clutch / Overload Protection / Double Insulation
- Certification: CE
VP-200 Tank Vacuum Pump Specifications
• Model: VP-200
• Pump Type: Tank-Type Electric Vacuum Pump
• Voltage / Frequency: 110V AC, 60Hz
• Motor Power: 430W
• Maximum Vacuum: -0.09 MPa
• Airflow: 113 L/min
• Vacuum Tank Capacity: 4 Liters
• Vacuum Monitoring: Integrated Vacuum Gauge
• Moisture Protection: Integrated Water Trap
• Frame: Protective Steel Carrying Frame
What’s Included
• BLUEROCK 12Z1 T/S 2600W Dual-Speed Core Drill Motor
• Tilting Core Drill Stand
• Rolling Vacuum-Ready Base
• BLUEROCK VP-200 Tank Type Vacuum Pump
• Vacuum Hose and Connection Hardware
• Integrated Wet-Drilling Water Connection
• 12Z1 T/S Operational Manual
• VP-200 Operational Manual
The included VP-200 Tankless Vacuum Pump allows the drill stand to be secured without drilling an anchor hole when coring vertically on a suitable surface.
Vacuum mounting works best on clean, smooth, flat and relatively non-porous concrete. Rough, cracked, porous or uneven surfaces may prevent the base from maintaining adequate suction.
Important: Always verify that adequate vacuum is established and maintained before beginning drilling.
ATTENTION: This package ships in 2 separate boxes. Packages may arrive separately. Please reference all tracking numbers provided with your order for complete shipment status.
BUILT FOR PROFESSIONALS. BACKED BY BLUEROCK.
✓ 1-Year Limited Warranty Included - Coverage against defects in materials and workmanship.*
✓ LIFETIME U.S. Based Technical Support - Knowledgeable support directly from our team by phone, email, chat or SMS.
✓ Replacement Parts Support - We stock replacement parts and service components at our Washington State facility.
Real People. Real Product Support.
Questions before or after your purchase? Call, text or email our U.S. based team at 206-604-8363 or sales@bluerocktools.com
*Warranty limitations and exclusions apply. See BLUEROCK Tools warranty terms for complete details.
