BLUEROCK VP-200 Tank Type Vacuum Pump 110v for Concrete Coring Drill Vacuum Base
Brand : BLUEROCK TOOLS
- SKU:
- VP-200 Tank Type
- UPC:
- 789091583844
- Availability:
- IN STOCK – Ships Same Business Day (Order by 2PM Pacific / 5PM Eastern)
- Weight:
- 55.00 LBS
- Shipping:
- FREE USA Shipping | Express Available

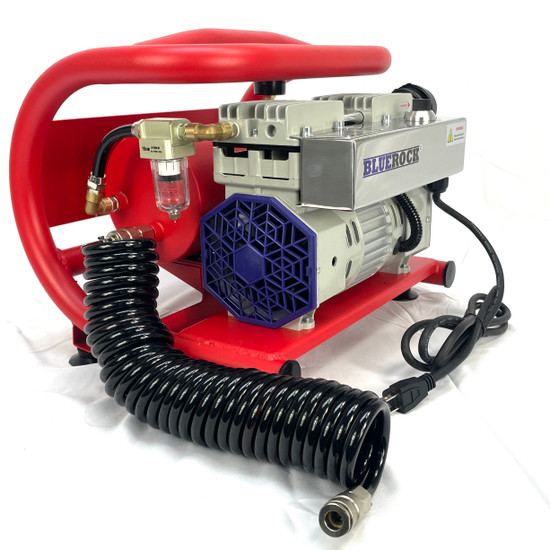

BLUEROCK VP-200 Tank Type Vacuum Pump for Concrete Core Drills (110V)
Professional Vacuum Holding Power with Built-In Vacuum Reserve
The BLUEROCK VP-200 Tank Type Vacuum Pump is engineered to provide dependable vacuum pressure for concrete core drill systems equipped with vacuum mounting bases. Featuring a built-in 4-liter vacuum reservoir, the VP-200 provides an additional buffer against minor pressure fluctuations, helping maintain a strong vacuum seal during demanding drilling applications. The pump is designed specifically for professional concrete coring operations and is intended for use on clean, smooth, dry surfaces.
Powered by a 430W electric piston pump, the VP-200 delivers up to -0.09 MPa vacuum pressure and 113 L/min airflow, providing the holding power needed for secure anchor-free setup in many applications.
Ideal for commercial concrete drilling, plumbing, electrical, HVAC, utility, and general construction contractors, the VP-200 offers professional-grade performance in a rugged steel protective frame.
Features
- 4-Liter Vacuum Tank – Provides a vacuum reserve to help maintain holding pressure during operation.
- Powerful Vacuum Performance – Produces up to -0.09 MPa vacuum pressure for secure vacuum base attachment.
- 113 L/min Airflow – Fast evacuation for dependable vacuum performance.
- 430W Piston-Type Pump – Built for continuous professional use.
- Heavy-Duty Protective Frame – Helps protect the pump during transportation and jobsite use.
- Integrated Vacuum Gauge – Allows operators to monitor system vacuum.
- Built-In Water Trap – Helps protect the pump by capturing moisture before it enters the vacuum system.
- 110V Standard Power – Operates from common North American outlets.
- US Industrial Plug & Connector – Ready for immediate jobsite use.
Applications
Perfect for vacuum mounting concrete core drill stands when drilling:
- Reinforced Concrete
- Concrete Slabs
- Foundations
- Sidewalks
- Block
- Brick
- Masonry
Ideal for:
- Concrete Coring Contractors
- Plumbing Contractors
- Electrical Contractors
- Mechanical Contractors
- Utility Contractors
- General Construction
Specifications
| Specification | Value |
|---|---|
| Model | BLUEROCK VP-200 |
| Pump Type | Tank Type Electric Vacuum Pump |
| Voltage | 110V AC |
| Frequency | 60 Hz |
| Power | 430W |
| Current | 3.6A |
| Pump Type | Piston Type |
| Maximum Vacuum | -0.09 MPa |
| Air Flow | 113 L/min |
| Vacuum Tank Capacity | 4 Liters |
| Pump Speed | 1720 RPM |
| Weight | 48 lbs |
| Power Plug | US Industrial Plug & Connector |
Specifications are based on the VP-200 operational manual.
Included
- BLUEROCK VP-200 Tank Type Vacuum Pump
- Vacuum Hose
- 1/4" NPT Male Connector
- Instruction Manual
Why Choose a Tank-Type Vacuum Pump?
The integrated vacuum reservoir offers several advantages over a tankless system:
- Provides a reserve of stored vacuum to help maintain holding force during small leaks or brief pressure changes.
- Helps stabilize vacuum pressure while drilling.
- Ideal for larger drill stands and demanding commercial applications.
- Includes an integrated pressure gauge and water trap for easier monitoring and maintenance.
For contractors performing frequent or heavy-duty core drilling, the VP-200 offers additional confidence through its built-in vacuum storage system.
Important Usage Information
The VP-200 is designed for use with vacuum-base concrete core drilling systems on clean, smooth, dry concrete surfaces. Always verify that a secure vacuum has been established before drilling. When wet drilling, ensure water is diverted away from the vacuum base, and regularly inspect the water trap to prevent moisture from entering the pump. Follow all operating and safety instructions before use.
Built for Professional Contractors
Whether you're drilling plumbing penetrations, electrical conduit openings, utility cores, or anchor holes, the BLUEROCK VP-200 Tank Type Vacuum Pump delivers reliable vacuum performance with the added security of an integrated vacuum reservoir—making it an excellent choice for demanding commercial coring applications.
