BLUEROCK® WS700 Extra Large Industrial Wire Stripping Machine – 7" Cable Capacity
Brand : BLUEROCK TOOLS
- SKU:
- WS700
- UPC:
- 789091583806
- Availability:
- IN STOCK – Ships Same Business Day (Order by 2PM Pacific / 5PM Eastern)
- Weight:
- 1,521.00 LBS
- Shipping:
- FREE USA Shipping | Express Available

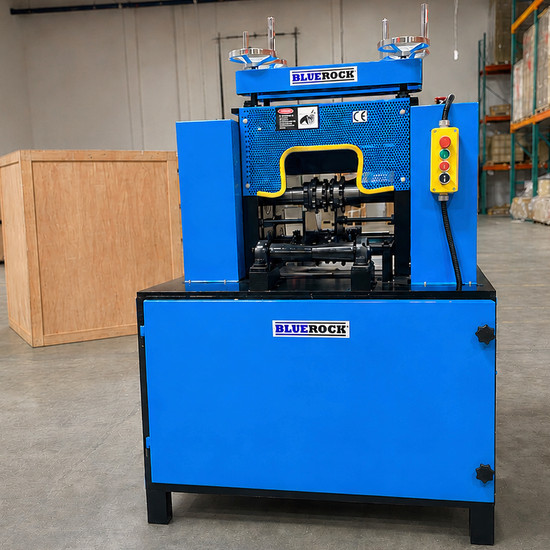

BLUEROCK® Model WS700 Extra Large Wire Stripping Machine
Industrial Wire Stripper for Large Cable Recycling
The BLUEROCK® WS700 is an extra-large industrial wire stripping machine designed for processing large copper and aluminum cables commonly found in utility, industrial, demolition, scrap, and recycling operations. Equipped with dual cutting blades and a powerful 7.5KW three-phase motor, the WS700 can process cable up to 7 inches (180mm) in diameter while stripping at speeds up to 80 feet per minute.
Designed for professional recycling operations, the WS700 cuts both the top and bottom of cable jackets to help separate valuable copper and aluminum conductors from insulation materials. Adjustable cutting depth and feed mechanisms allow operators to process a wide range of large cable types.
Features
✔ Extra Large Capacity – Processes round cable from 1-1/4" to 7" (30mm-180mm) OD
✔ Dual Blade Design – Cuts both the top and bottom of cable jackets
✔ High Production Output – Feed speeds up to 80 feet per minute
✔ Heavy-Duty Industrial Construction – Approximate machine weight of 1,410 lbs (640kg)
✔ Forward & Reverse Operation
✔ Adjustable Cutting Depth
✔ Three-Phase Industrial Motor
✔ Front and Rear Safety Guards
✔ Emergency Stop System
✔ Designed for Copper and Aluminum Cable Recycling
Common Applications
- Scrap yards
- Wire recycling facilities
- Utility contractors
- Electrical contractors
- Demolition companies
- Industrial recycling operations
- Large cable processing operations
Technical Specifications
Electrical
- Voltage: 230V
- Frequency: 60Hz
- Phase: 3 Phase
- Motor: 7.5KW
- Approximate Current Draw: 25A
- Reverse Function: Yes
- Installation: Must be connected by a qualified electrician
Wire Capacity
- Wire Range: 1-1/4" to 7" OD (30mm-180mm)
- Maximum Jacket Cutting Depth: 1" (25mm)
- Cutting Configuration: Dual Blade (Top & Bottom Cut)
Performance
- Feed Speed: Up to 80 Feet Per Minute
Construction
- Drive System: Transfer Case, Chain, Gear & Sprocket Drive
Dimensions & Weight
- Machine Weight: 1,410 lbs (640kg)
- Shipping Weight: 1,521 lbs (690kg)
- Machine Dimensions:
- 39" L x 35" W x 51" H
- (1000mm x 900mm x 1300mm)
- Shipping Dimensions:
- 41" L x 37" W x 57" H
- (1050mm x 950mm x 1450mm)
Included
- BLUEROCK® WS700 Wire Stripping Machine
- Front Safety Guard
- Rear Safety Guard
- Emergency Stop System
- Operating Manual
Commercial Purchaser Requirement
IMPORTANT: COMMERCIAL / INDUSTRIAL USE ONLY
The BLUEROCK® WS700 Wire Stripping Machine is an industrial-grade machine intended for use by trained commercial operators. This machine contains powerful feed rollers, cutting blades, pinch points, and other moving components capable of causing serious injury, amputation, dismemberment, or death if operated improperly.
Prior to shipment, all purchasers must complete and sign the BLUEROCK® Commercial Purchaser Safety Acknowledgment and Operator Training Certification.
By signing this document, the purchaser confirms:
• The machine is being purchased for commercial or industrial use.
• Operators will be properly trained before use.
• The operating manual and safety instructions have been reviewed.
• All guards, shields, warning labels, and safety devices will remain installed and operational.
• Only qualified personnel will be permitted to operate the machine.
Orders cannot be released for shipment until the completed safety acknowledgment form has been received and approved.
If you have questions regarding the safety acknowledgment process, please contact BLUEROCK® Tools prior to placing your order.
