BLUEROCK M12 Fast Core Rig Mounting Kit – 24 Drop-In Standard Duty Expansion Anchors, SDS-Plus Bit, Threaded Rod - Concrete Core Drill Stand Fastener
Brand : BLUEROCK TOOLS
- SKU:
- M12 Anchor Kit
- UPC:
- 789091583936
- Availability:
- IN STOCK – Ships Same Business Day (Order by 2PM Pacific / 5PM Eastern)
- Weight:
- 13.00 LBS
- Shipping:
- FREE USA Shipping | Express Available
BLUEROCK M12 Fast Concrete Core Drill Stand Anchor Kit
✓ 1-Year Limited Warranty Included | ✓ LIFETIME U.S.-Based Technical Support | ✓ U.S. Stocked Replacement Parts
The BLUEROCK M12 Concrete Core Drill Stand Anchor Kit is a complete standard-duty mounting system for securely anchoring core drill stands to concrete. The kit includes 24 M12 x 50mm drop-in anchors, 16mm SDS-Plus drill bit, M12 x 250mm quick-release threaded rod, setting tool, clamping hardware and carrying case for fast, repeated core drill stand installations.
Features
* Complete M12 core drill stand anchoring system for mounting compatible drill stands to concrete
* Includes 24 M12 x 50mm drop-in anchors for multiple installations
* 16mm SDS-Plus drill bit and manual setting tool included for proper anchor installation
* M12 x 250mm quick-release threaded rod with clamping hardware allows fast stand mounting and removal
* Large mounting washer helps distribute clamping force across the drill stand base
* Plastic anchor storage box and heavy-duty carrying case keep the complete kit organized
* BLUEROCK’s standard-duty anchor system; for larger or higher-torque applications, consider the M16 Heavy-Duty Anchor Kit when compatible with the drill stand
M12 Anchor Specifications
* Anchor Size: M12 x 50mm | Nominal Drill Hole: 16mm | Minimum Hole Depth: 54mm
* Effective Anchorage Depth: 50mm | Installation Torque: 35 N·m
* Minimum Concrete Thickness: 100mm (3.94”)
* Minimum Edge Distance: 150mm (5.91”) | Minimum Anchor Spacing: 200mm (7.87”)
* Recommended Tension Load: 6.0 kN | Recommended Shear Load: 10.5 kN*
* Base Material: Non-cracked concrete
*Recommended load values are based on the conditions specified in the anchor technical data. Actual anchoring requirements depend on the application and installation conditions.

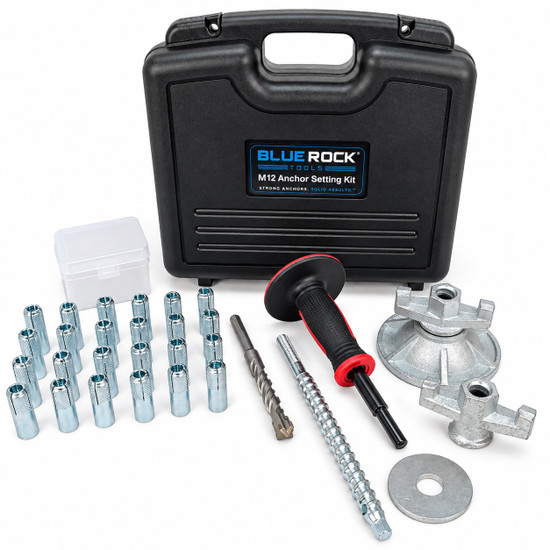

Included Accessories
* 24 × M12 x 50mm drop-in concrete anchors
* 1 × 16 x 55mm SDS-Plus drill bit
* 1 × M12 x 250mm quick-release threaded rod
* 1 × M12 manual anchor setting tool
* 1 × Combination wing nut
* 1 × Wing nut
* 1 × 60 x 20 x 5mm mounting washer
* 1 × Plastic anchor storage box
* 1 × Heavy-duty carrying case
Installation & Compatibility
Drill a 16mm diameter hole at least 54mm deep, thoroughly clean the hole, insert the M12 anchor flush with the concrete surface, and expand it using the included setting tool. Thread the M12 mounting rod into the installed anchor, position the drill stand, and secure it with the supplied washer and clamping hardware.
The M12 kit is intended as BLUEROCK’s standard-duty anchoring option for compatible core drill stands. Required anchoring capacity depends on the drill, stand design, motor torque, core bit diameter, drilling orientation, concrete condition and mounting geometry. For larger, heavier or higher-torque applications, consider the BLUEROCK M16 Heavy-Duty Anchor Kit when compatible with the drill stand.
Important: Verify that the anchor is properly installed and the core drill stand is rigid and securely mounted before operating the drill. Follow the mounting requirements specified by the core drill and stand manufacturer.
BUILT FOR PROFESSIONALS. BACKED BY BLUEROCK.
✓ 1-Year Limited Warranty Included
Coverage against defects in materials and workmanship.*
✓ LIFETIME U.S. Based Technical Support
Get knowledgeable product and technical support directly from our team by phone, email, chat, or SMS.
✓ Replacement Parts Support
We stock replacement parts and service components for BLUEROCK equipment at our Washington State facility.
Real People. Real Product Support.
Questions before or after your purchase? Call, text or email our U.S. based team at 206-604-8363 or sales@bluerocktools.com
*Warranty limitations and exclusions apply. See BLUEROCK Tools warranty terms for complete details.
Important: Always verify that the anchor is properly set and the core drill stand is securely mounted before operating the drill. Anchor performance depends on proper installation and the strength and condition of the concrete.
