BLUEROCK M16 Fast Core Rig Mounting Kit – 18 Drop-In Heavy Duty Expansion Anchors, SDS-Plus Bit, Threaded Rod - Concrete Core Drill Stand Fastener
Brand : BLUEROCK TOOLS
- SKU:
- M16 Anchor Kit
- UPC:
- 789091583943
- Availability:
- IN STOCK – Ships Same Business Day (Order by 2PM Pacific / 5PM Eastern)
- Weight:
- 16.00 LBS
- Shipping:
- FREE USA Shipping | Express Available
BLUEROCK M16 Fast Concrete Core Drill Stand Anchor Kit
✓ 1-Year Limited Warranty Included | ✓ LIFETIME U.S.-Based Technical Support | ✓ U.S. Stocked Replacement Parts
The BLUEROCK M16 Concrete Core Drill Stand Anchor Kit is a complete heavy-duty mounting system for securely anchoring core drill stands to concrete. The kit includes 18 M16 x 65mm drop-in anchors, 20mm SDS-Plus drill bit, M16 x 250mm quick-release threaded rod, setting tool, clamping hardware and carrying case for fast, repeated core drill stand installations.
Features
- Complete M16 core drill stand anchoring system for mounting compatible drill stands to concrete
- Includes 18 M16 x 65mm drop-in anchors for multiple installations
- 20mm SDS-Plus drill bit and manual setting tool included for proper anchor installation
- M16 x 250mm quick-release threaded rod with clamping hardware allows fast stand mounting and removal
- Large mounting washer helps distribute clamping force across the drill stand base
- Plastic anchor storage box and heavy-duty carrying case keep the complete kit organized
- BLUEROCK’s heavy-duty anchor system with greater anchoring capacity than the M12 kit for larger, heavier or higher-torque applications when compatible with the drill stand
M16 Anchor Specifications
- Anchor Size: M16 x 65mm | Nominal Drill Hole: 20mm | Minimum Hole Depth: 70mm
- Effective Anchorage Depth: 65mm | Installation Torque: 60 N·m
- Minimum Concrete Thickness: 130mm (5.12”)
- Minimum Edge Distance: 195mm (7.68”) | Minimum Anchor Spacing: 260mm (10.24”)
- Recommended Tension Load: 12.6 kN | Recommended Shear Load: 19.3 kN*
- Base Material: Non-cracked concrete
*Recommended load values are based on the conditions specified in the anchor technical data. Actual anchoring requirements depend on the application and installation conditions.

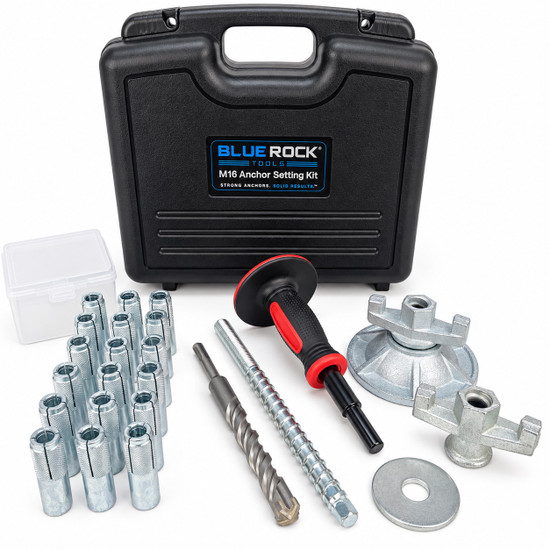

Included Accessories
- 18 × M16 x 65mm drop-in concrete anchors
- 1 × 20 x 70mm SDS-Plus drill bit
- 1 × M16 x 250mm quick-release threaded rod
- 1 × M16 manual anchor setting tool
- 1 × Combination wing nut
- 1 × Wing nut
- 1 × 60 x 20 x 5mm mounting washer
- 1 × Plastic anchor storage box
- 1 × Heavy-duty carrying case
Installation & Compatibility

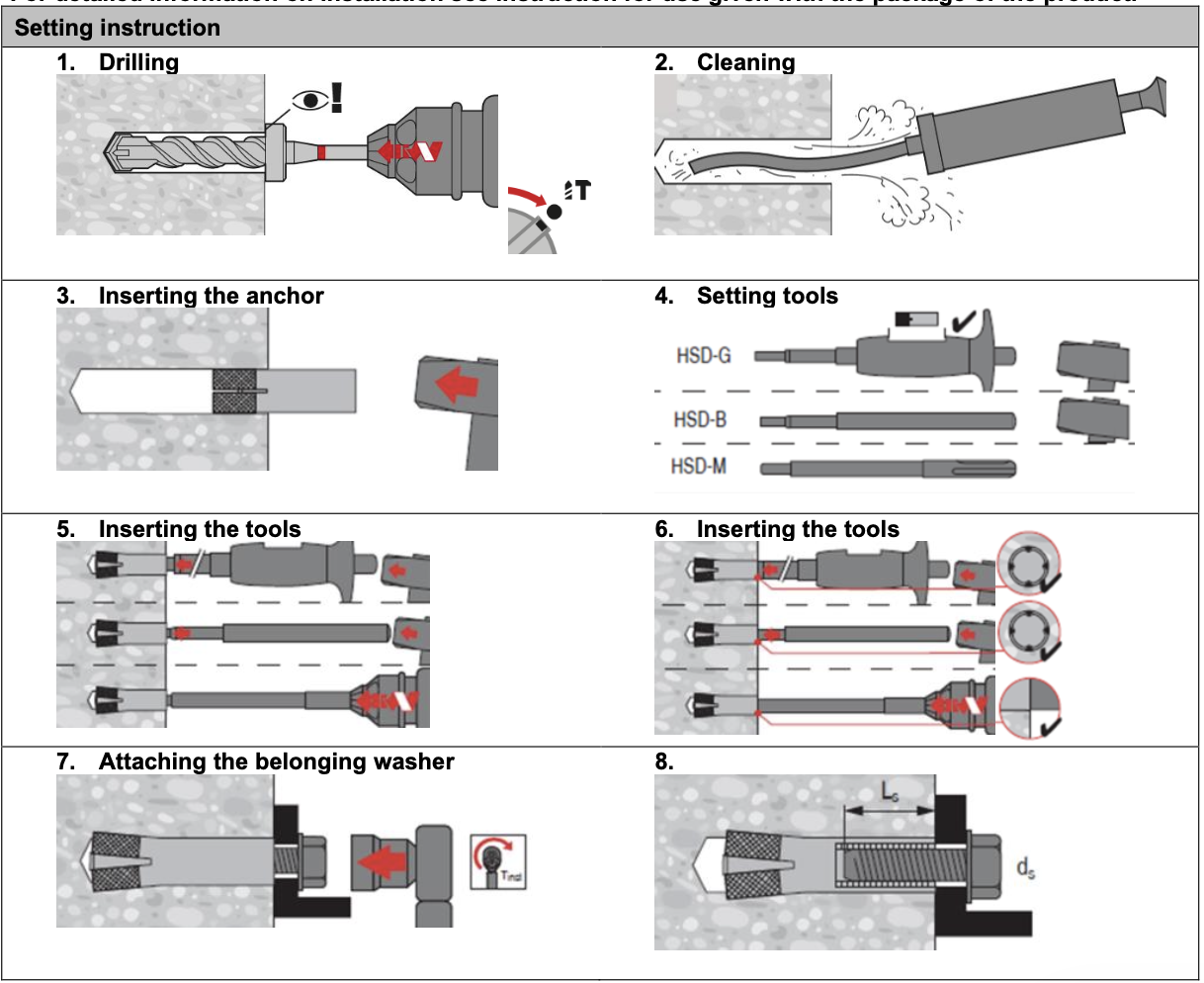

Drill a 20mm diameter hole at least 70mm deep, thoroughly clean the hole, insert the M16 anchor flush with the concrete surface, and expand it using the included setting tool. Thread the M16 mounting rod into the installed anchor, position the drill stand, and secure it with the supplied washer and clamping hardware.
The M16 kit is intended as BLUEROCK’s heavy-duty anchoring option for compatible core drill stands and provides greater anchoring capacity than the M12 system. Required anchoring capacity depends on the drill, stand design, motor torque, core bit diameter, drilling orientation, concrete condition and mounting geometry. For smaller or less demanding applications, consider the BLUEROCK M12 Standard-Duty Anchor Kit when compatible with the drill stand.
Important: Verify that the anchor is properly installed and the core drill stand is rigid and securely mounted before operating the drill. Follow the mounting requirements specified by the core drill and stand manufacturer.
BUILT FOR PROFESSIONALS. BACKED BY BLUEROCK.
✓ 1-Year Limited Warranty Included
Coverage against defects in materials and workmanship.*
✓ LIFETIME U.S. Based Technical Support
Get knowledgeable product and technical support directly from our team by phone, email, chat, or SMS.
✓ Replacement Parts Support
We stock replacement parts and service components for BLUEROCK equipment at our Washington State facility.
Real People. Real Product Support.
Questions before or after your purchase? Call, text or email our U.S. based team at 206-604-8363 or sales@bluerocktools.com
*Warranty limitations and exclusions apply. See BLUEROCK Tools warranty terms for complete details.
M16 Anchor Kit Operational Manual
