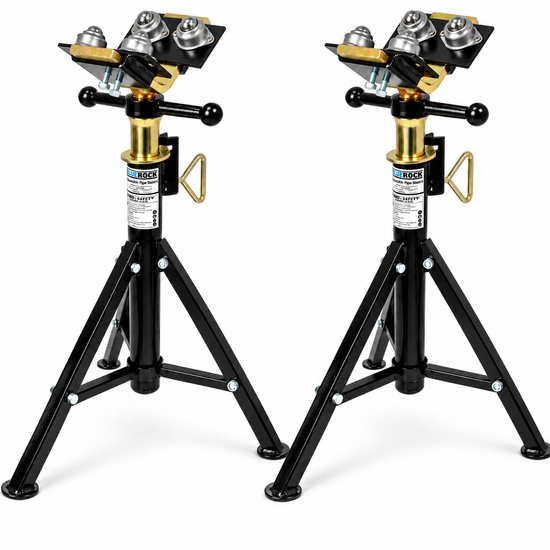

BLUEROCK 2-Pack FPS-135W/R 28”–48” Folding Pipe Stand Roller 4-Ball Transfer V-Head – 11” Pipe, 2,200 LB Capacity Each Stand
- SKU:
- 2 Pair FPS-135W/R
- UPC:
- 789091584179
- Weight:
- 60.00 LBS
- Shipping:
- FREE USA Shipping | Express Available
BLUEROCK 2-Pack FPS-135W/R 28"-48" Folding Universal Pipe Stand with BR-135 Rollers – 2,200 LB Capacity
✓ 1-Year Limited Warranty Included | ✓ LIFETIME U.S.-Based Technical Support | ✓ U.S. Stocked Replacement Parts
The BLUEROCK 2-Pack FPS-135W/R Folding Roller Pipe Stand is a heavy-duty adjustable support designed for pipe threading, grooving, cutting, fabrication, and maintenance work. Its BR-135 roller head supports pipe up to 11” diameter while allowing longitudinal movement for easier positioning. The stand adjusts from 28” to 48” and has a maximum rated load capacity of 2,200lbs. (1,000 kg).
Features
• 28”–48” adjustable working height
• Supports pipe up to 11” (300 mm) diameter each stand
• 2,200 lb. (1,000 kg) maximum rated load capacity each stand
• BR-135 roller head allows controlled longitudinal pipe movement and positioning
• Heavy-duty steel construction with folding tripod-style legs
• Folding design provides easier transportation and storage
• Designed for pipe threading, grooving, cutting, fabrication, and maintenance work
Roller Pipe Stand Specifications
• Model: 2-Pack FPS-135W/R
• Height Adjustment: 28”–48” (700–1220 mm)
• Maximum Pipe Capacity: 11” (300 mm)
• Maximum Rated Load: 2,200 lbs. (1,000 kg)
• Support Head: BR-135 Roller Head
• Base: Folding Tripod
• Product Weight: Approx. 27.6 lb. (12.5 kg) each stand
Included
• 2 × BLUEROCK FPS-135 Folding Pipe Stand
• 2 × BR-135 Roller Head
Important Safety Information
Improper use of a pipe stand can result in falling or moving loads, serious injury, or death. Read and understand all safety instructions before use.
• ROLLER HAZARD: Supported pipe can roll or move unexpectedly. Maintain control of the pipe and secure it against unintended movement when necessary.
• NEVER use this stand to support a vehicle, person, scaffolding, structure, or any load beneath which personnel will work.
• NEVER exceed the 2,200 lb. (1,000 kg) maximum rated load capacity.
• Always use a minimum of two appropriately positioned pipe stands to support a single length of pipe. Additional stands may be required based on pipe length, diameter, weight, and balance.
• Use only on a smooth, level, firm, stable surface with the legs fully opened and properly positioned.
• Adjust and securely lock the stand height before loading. Never adjust, reposition, or fold the stand while loaded.
• Center and balance the pipe on the rollers and properly distribute the load between stands. Never drop pipe onto the rollers.
• Keep personnel clear of supported pipe and pinch, crush, and rolling hazards.
• Inspect the stand before each use. Do not use if any legs, braces, feet, welds, rollers, adjustment components, or locking mechanisms are damaged or malfunctioning.
• Never weld, drill, alter, or otherwise modify the stand.
• Wear appropriate PPE for the application, including safety glasses, gloves, protective footwear, and head protection as required.
